Flatbed

4x4 UV Flatbed

  • The UV flatbed printer meets the individual needs in the market. The UV printer can be completed in one printing.
  • The printed pattern is rich in color, the machine operation is simple, and the image printing speed is fast.
  • It is suitable for individualized and small batches of various industries printing needs.
Technical Specifications
Model Type BNZ - UV1313
Printer Head Epson DX7 I DX5 / Ricoh GH2220
Maximum Print Size 1300mm x 1300mm
Printing Speed 4pass 720 x 720 dpi 14m2 / h
6pass 720 x 1080dpi 8m2/ h
8pass 720 x 1440 dpl 6m2 / h
Ink Supply System Liquid Level Sensors
Ink Colour / Ink type C / M / Y /K / LC / LM / W / UV Ink
Printing Precision 720 x 720dpi, 360 x 1080dpi, 720 x 1080dpi, 720 x 1440dpi,
Media Thickness 0 - 100mm

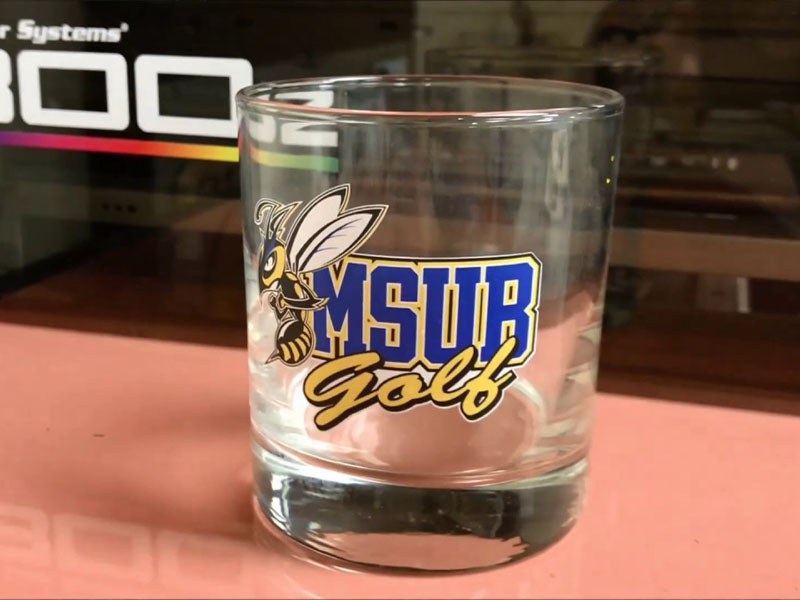

Printable Media Acrylic, Glass, Ceramic. Metal, Wood, Barrette, U Shield, Glass Frames,
Cigarette Case, Lighter, Name Tag, Stationery Products,Toys, Cellphone
Media Handling Vacuum Media Fixation Platform
Printing Mode Uni - Directional and Bi - Directional
Lifting way Platform up and down
RIP software Rip print I Photo print I Ultra print
Colour Control ICC Based Colour, Curves and Density Adjustment Function
Voltage I Power AC 110V I AC 220V , 50 / 60HZ - 1100W
Operating Envionment Temperature :20-30°C Humidity :40% - 60%
Dimensions (L x W x H) 2600mm x 1800mm x 400mm
Gross Weight 500kgs
