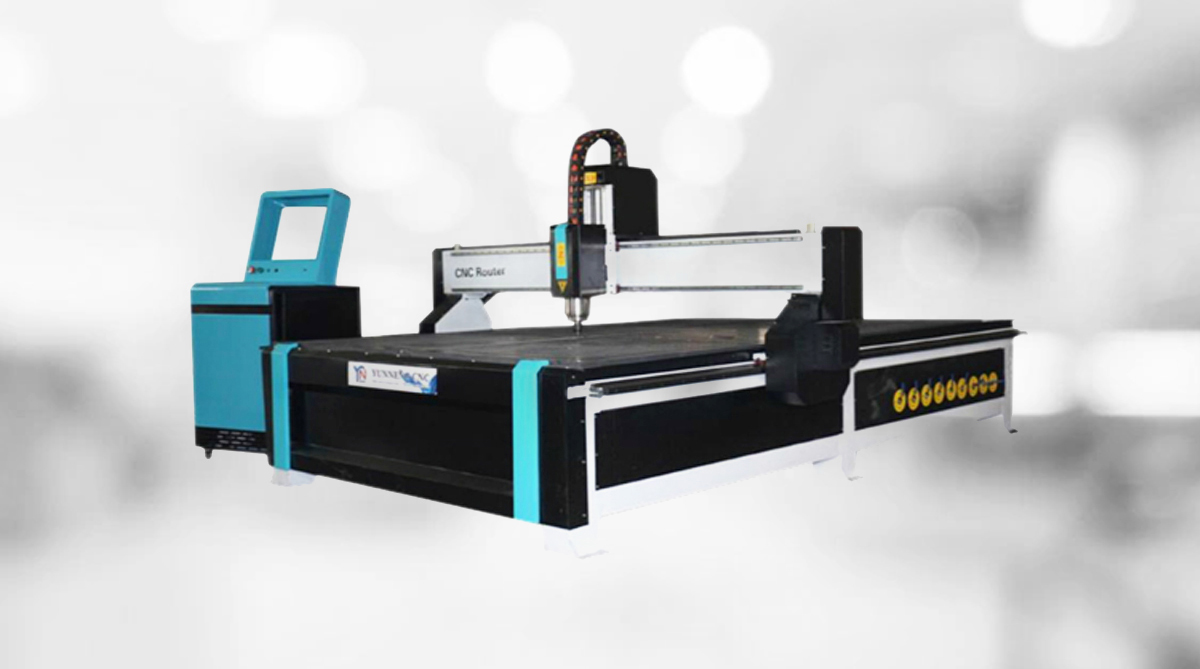

| Technical Specifications | |||
|---|---|---|---|
| Model | W1325 | W1530 | W2030 |
| Working area | 1300 * 2500 * 200 mm | 1500 * 3000 * 200 mm | 2000 * 3000 * 200 mm |
| Table Size | 1350 * 3050 mm | 1550 * 3550 mm | 2050 * 3550 mm |
| Spindle power | 3 Kw/ 4.5 Kw/ 5.5 Kw and more | ||
| Spindle Speed | 0 - 18000 rpm speed | ||
| Max. Rapid Travel Speed | 30 m/ min | ||
| Max. Working Speed | 10 m/ min | ||
| X,Y Axis transmission | Helical rack and gear box, 20# Rail Linear bearing | ||
| Z axis Transmission | 20# Rail linear bearing & TBI Bail screw #2510 | ||
| X, Y Resolution | <0.03 mm | ||
| Table Structure | Aluminium T - slot table (Option: Vaccum Table) | ||
| Motor Driver | Leadshine big driver | ||
| Control System | DSP A11 control system | ||
| Software | ARTCAM included | ||
| Environment Temperature | 0C - 45C | ||
| Humidity | 30% - 75% | ||
| Net Weight | 900 Kg | 1300 Kg | 1750 Kg |
| Gross Weight | 1100 Kg | 1500 Kg | 1950 Kg |
