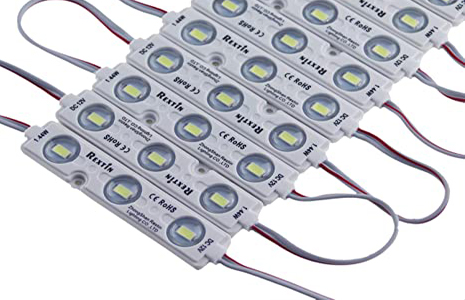

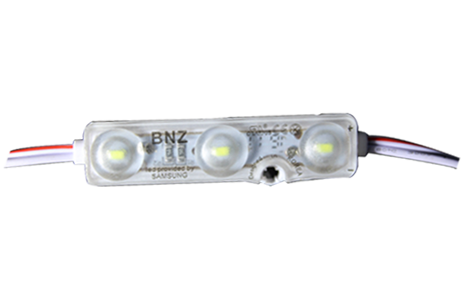

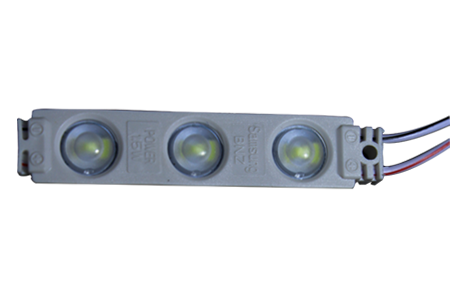

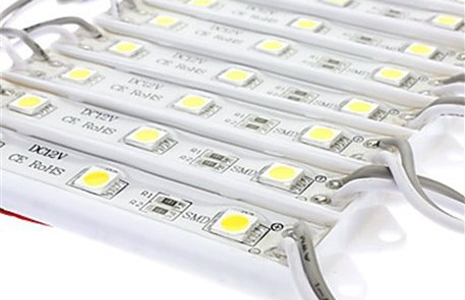

BNZ range of LED for signage powered by Samsung LED available as BNZ Spectra BNZ Alpaha and Beta Series in different colours and lumens with IP 67 waterproof grade with 3 years warranty. The long lasting LED supplied to Signage Industry for more than 4 years with very scarce replacement.
Best –in- Class with unique features
| Technical Specifications | |||||
|---|---|---|---|---|---|

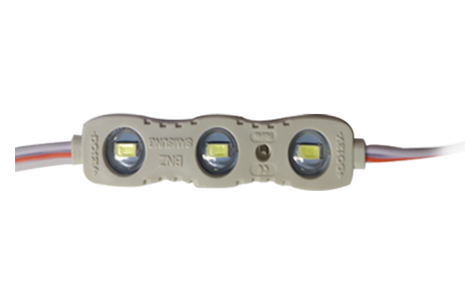

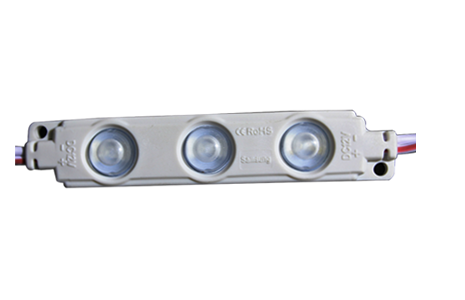

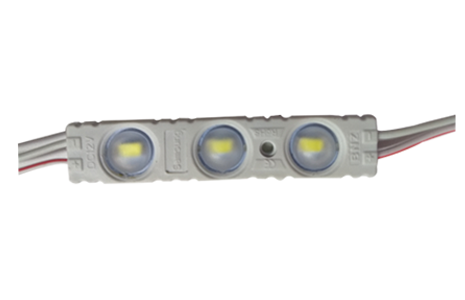

| PRODUCT | BNZ ALPHA | BNZ OMEGA | BNZ PREMIER | BNZ STAR | BNZ SPECTRA |
| Operating Power | DCI2V | DCI2V | DCI2V | DCI2V | DCI2V |
| Power | 1.5W,80mA | 1.5W,80mA | 1.5W,80mA | 1.5W,80mA | 1.5W,80mA |
| LED spec | 160view angle 50,000hr rated life |
160view angle 50,000hr rated life |
160view angle 50,000hr rated life |
160view angle 50,000hr rated life |
160view angle 50,000hr rated life |
| Luminous intensity(mcd) | 24000 | 24000 | 24000 | 24000 | 24000 |
| Luminous flux (lm/piece) | 72 | 72 | 72 | 72 | 72 |
| Luminous Efficiency (lm/W) | 75 | 75 | 75 | 75 | 75 |
| Standard colour Temp.(k) | 13000-15000k | 13000-15000k | 13000-15000k | 13000-15000k | 10000-13000k |
| Module connection. & cutability |
Wire to wire | Wire to wire | Wire to wire | Wire to wire | Wire to wire |
| Recommended channel height | Min.40mm | Min.40mm | Min.40mm | Min.40mm | Min.40mm |
| Wire length | 90mm | 90mm | 90mm | 90mm | 90mm |
| Piece weight | 8.3g | 8.3g | 8.3g | 8.3g | 8.3g |
| Operating temperature | -20 - 60°C | -20 - 60°C | -20 - 60°C | -20 - 60°C | -20 - 60°C |
| Storage temperature | -30 - 70°C | -30 - 70°C | -30 - 70°C | -30 - 70°C | -30 - 70°C |
| Waterproof rating | IP 67 | IP 67 | IP 67 | IP 67 | IP 67 |
| cable | AEG 18 | AEG 18 | AEG 18 | AEG 18 | AEG 18 |
| Case materials | PVC | PVC | PVC | PVC | PVC |
| Working hours | 50,000 hr | 50,000 hr | 30,000 hr | 30,000 hr | 50,000 hr |
| CR(colour rendering index | -70Ra | -70Ra | -70Ra | -70Ra | -70Ra |
| Shape | Lens type | Lens type | Lens type | Lens type | Lens type |
| Colour | W/R/B/G/Y/P | W//WW | W/WW | W/R/B/G/P/WW | W/R/B/G/WW |
| Power consumption | 1.5W | 1.5W | 1.5W | 1.5W | 1.2W |
| View angle | 160degrees | 160degrees | 120degrees | 60degrees | 160degrees |
